AAO Wafers

$0.00 – $475.00

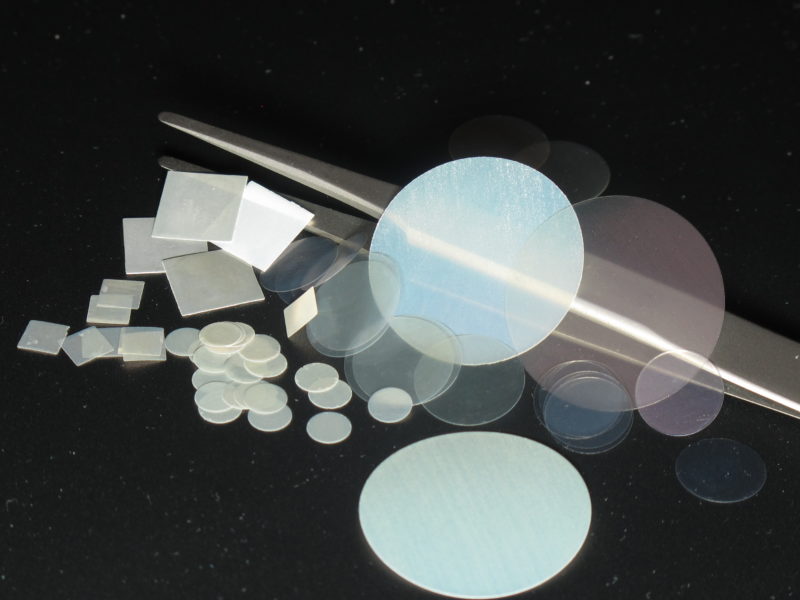

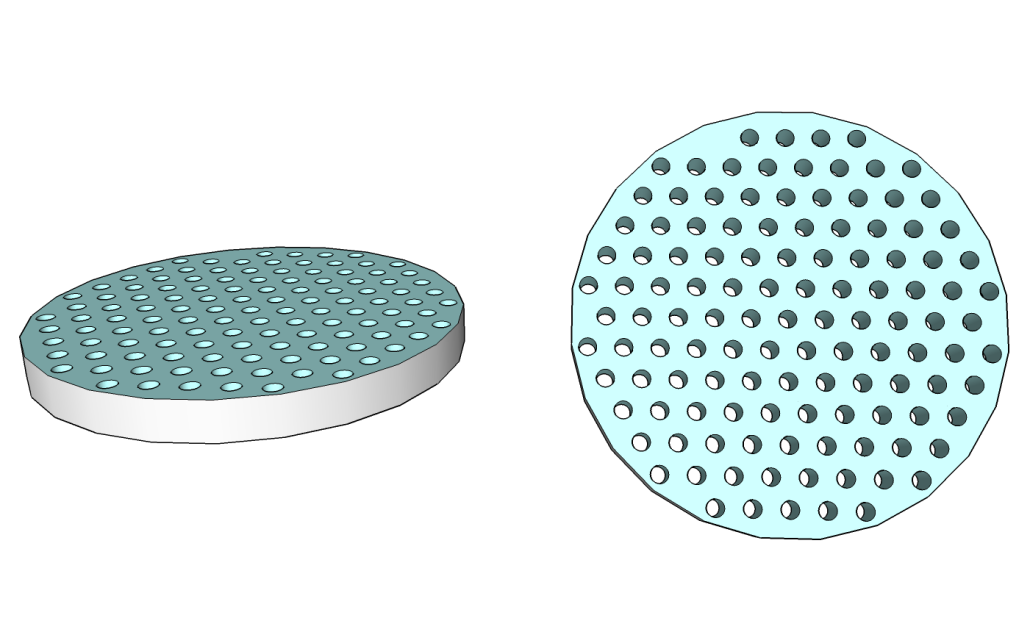

Free-standing nanoporous AAO wafers with pores open on both faces (also known as anodic alumina membranes or nanotemplates) are the most popular form factor for many applications.

Wide selection of wafer sizes, pore diameters and AAO thicknesses in stock for on-line ordering and quick delivery.

No minimal order – just select AAO parameters and in the pull-down menu below and add to cart.

Customization – if you need different specifications, review the table below and contact us with your requirements.

For those who need more than a few wafers for their project, AAO Wafer Packs offer significant cost savings per unit:

AAO Volume Packs

Packs of 20, 50 or 100 wafers or membranes of the same size, thickness and pore diameter.

AAO Variety Packs

Assortment of AAO wafers with different pore diameters, 3 to 10 wafer per pore size.

Description

The general range of AAO Wafers geometries and specifications.

PARAMETER	AVAILABLE RANGE*	STANDARD SPECIFICATIONS (STOCK PRODUCTS)
Pore Diameter, nm	2 – 500	10, 20, 40, 60, 80, 120, 160, 200, 250 (±10% + 2)
Size of Free-Standing AAO, mm	1 – 200	5, 10, 13, 25 (±0.1); 50, 100 (±0.2)

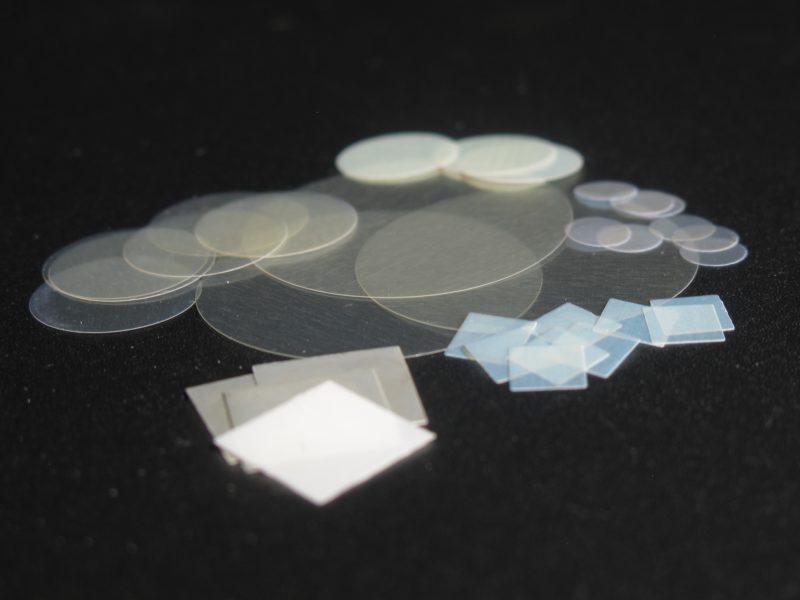

Shape	any	round or square
AAO Thickness, µm	5 – 200	20±1 (size 5 to 13 mm only), 50±2, 100±4, 150±10
Pore Density, cm^-2	10¹² – 10⁸	depending on the pore diameter
Porosity, %	1 – 60	10 – 50 (±3-5)

* Custom specifications within these ranges are available upon request, contact us with your requirements.

** Lead time is 2 to 5 days for standard specifications and 2-6 weeks for custom or out of stock products.

*** Volume discounts are available on orders over $750. Contact us for to request a formal quotation.

Additional information

Pore Diameter	10 nm ( 50 µm thickness only), 20 nm, 40 nm, 80 nm, 120 nm, 160 nm, 200 nm, 250 nm

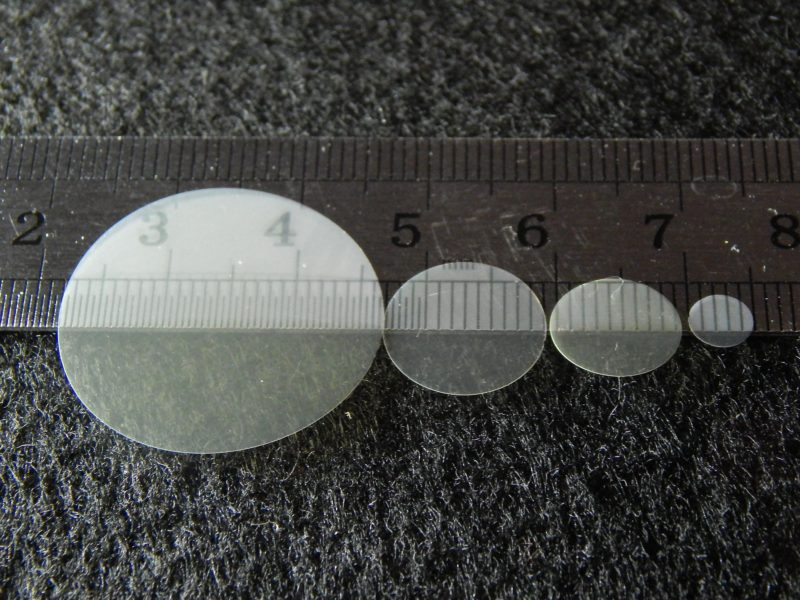

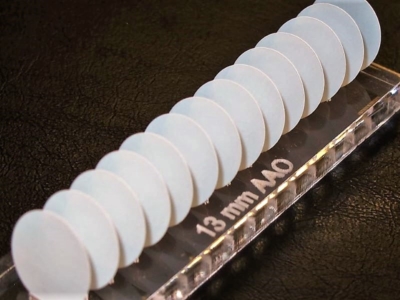

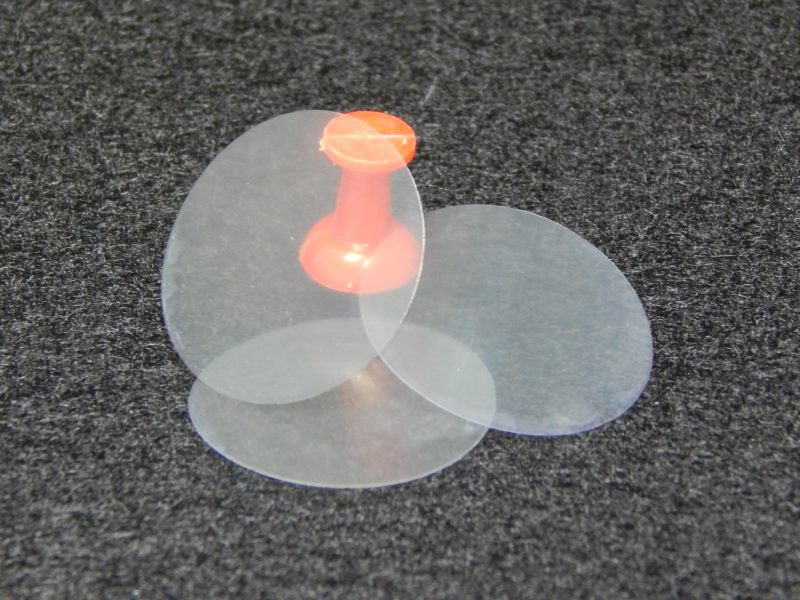

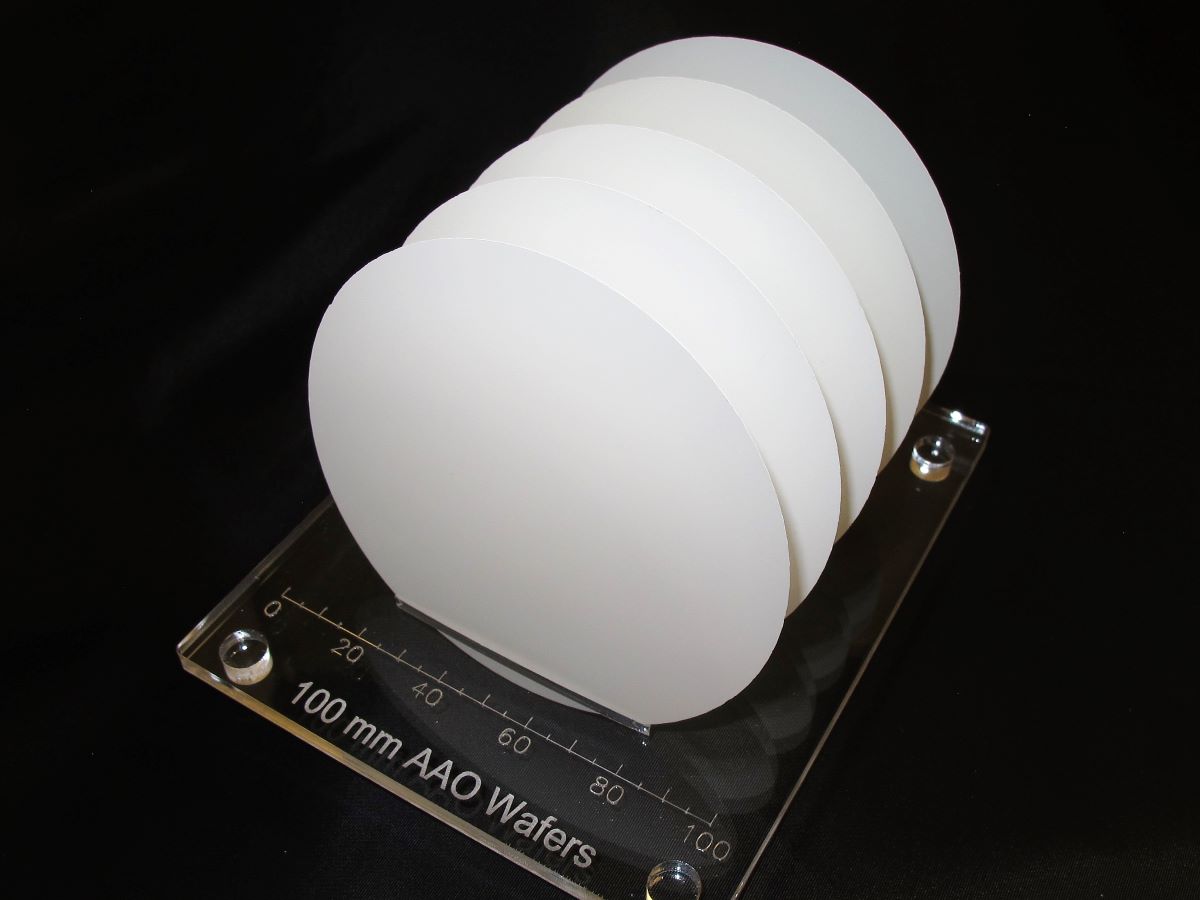

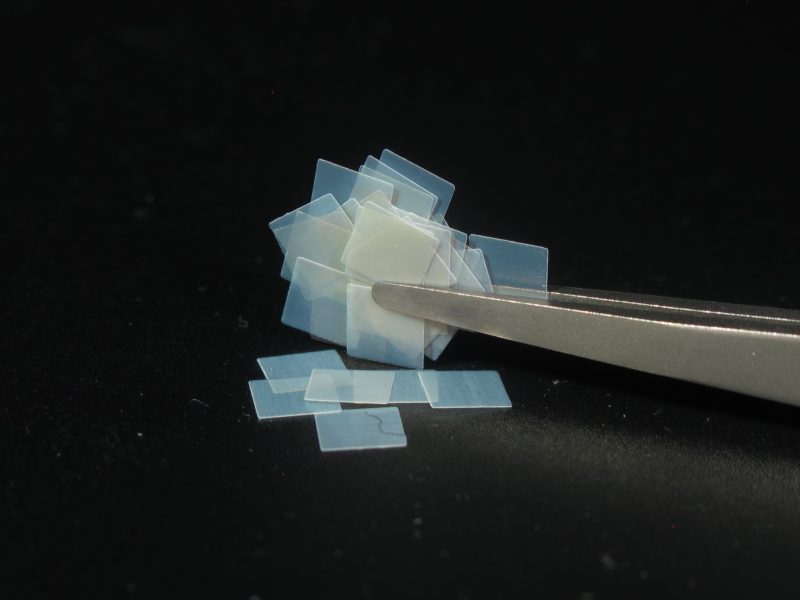

Wafer Size	5 mm diameter, 10 mm diameter, 13 mm diameter, 25 mm diameter, 50 mm diameter, 100 mm diameter, 5 mm x 5mm square, 10 mm x 10 mm square, 25 mm x 25 mm square
Wafer Thickness	20 µm (for 5, 10 and 13 mm size), 50 µm, 100 µm, 150 µm
Extreme Pore Diameter	10 nm, 200 nm
